2 x 8 Watt Bluetooth Stereo Audio Amplifier Board - TSA2110B (TWS/Apt-X)

2 x 8 Watt Bluetooth Stereo Audio Amplifier Board - TSA2110B (TWS/Apt-X)
2 x 8 Watt Bluetooth Stereo Audio Amplifier Board - TSA2110B (TWS/Apt-X) 2 x 8 Watt Bluetooth Stereo Audio Amplifier Board - TSA2110B (TWS/Apt-X) 2 x 8 Watt Bluetooth Stereo Audio Amplifier Board - TSA2110B (TWS/Apt-X)
Brand: Tinysine
Product Code: G59685FB38664A
Reward Points: 0
Availability: 1156
Price: $17.95

5 or more $16.00
20 or more $15.00
   - OR -

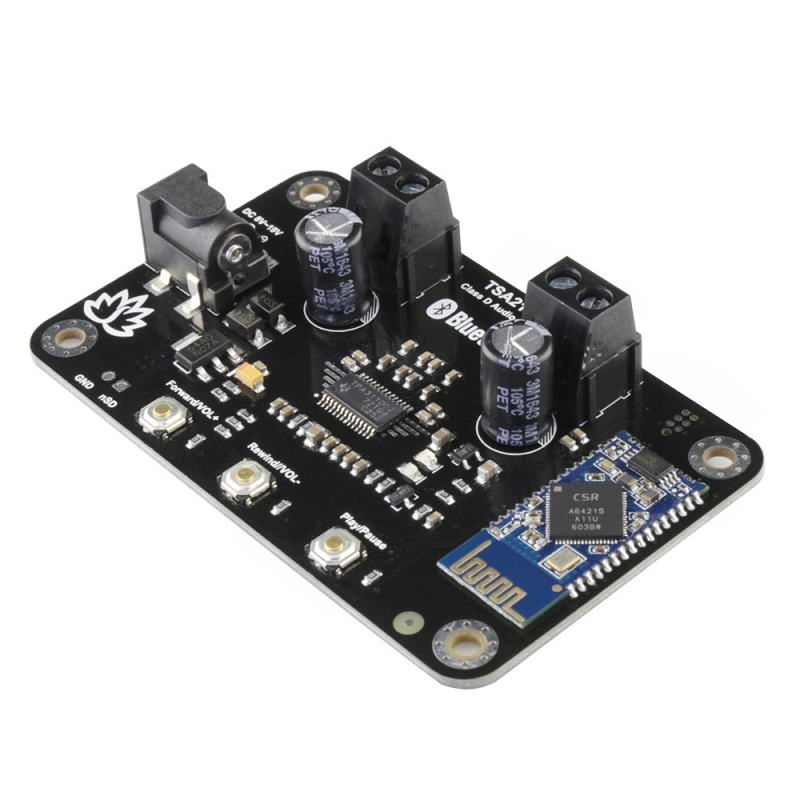

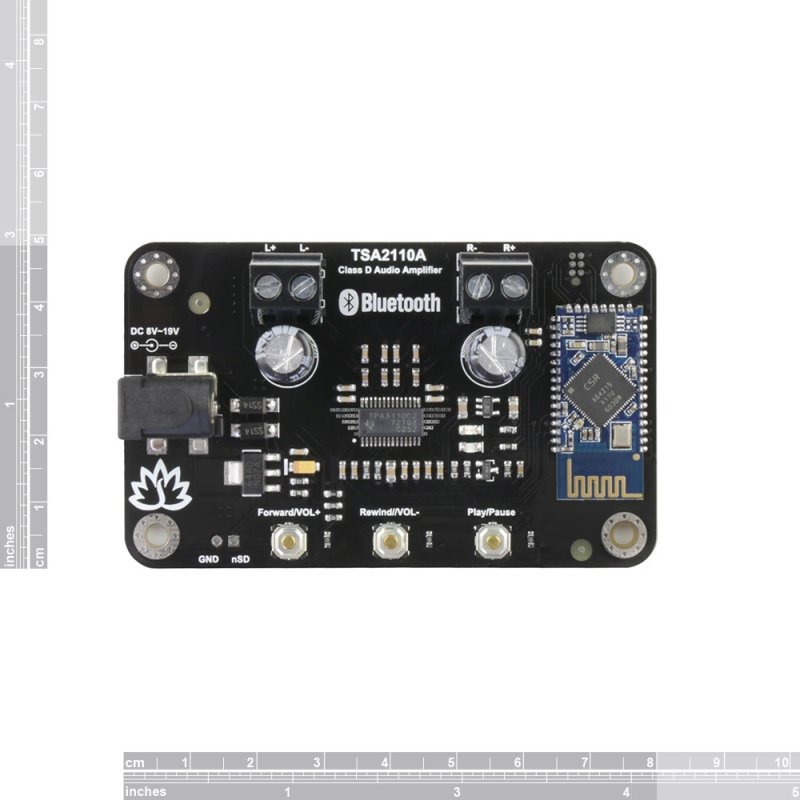

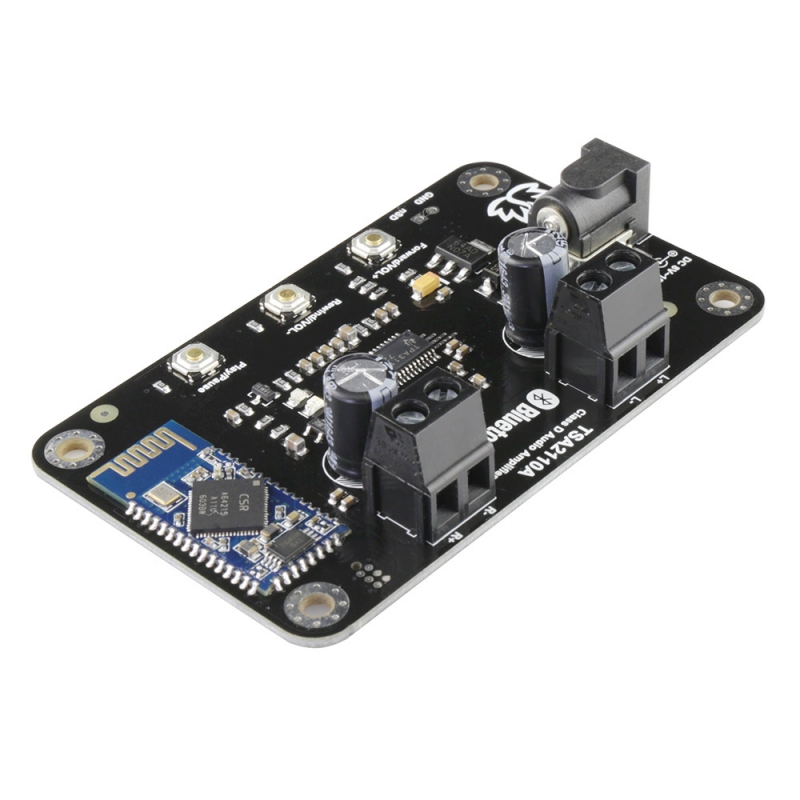

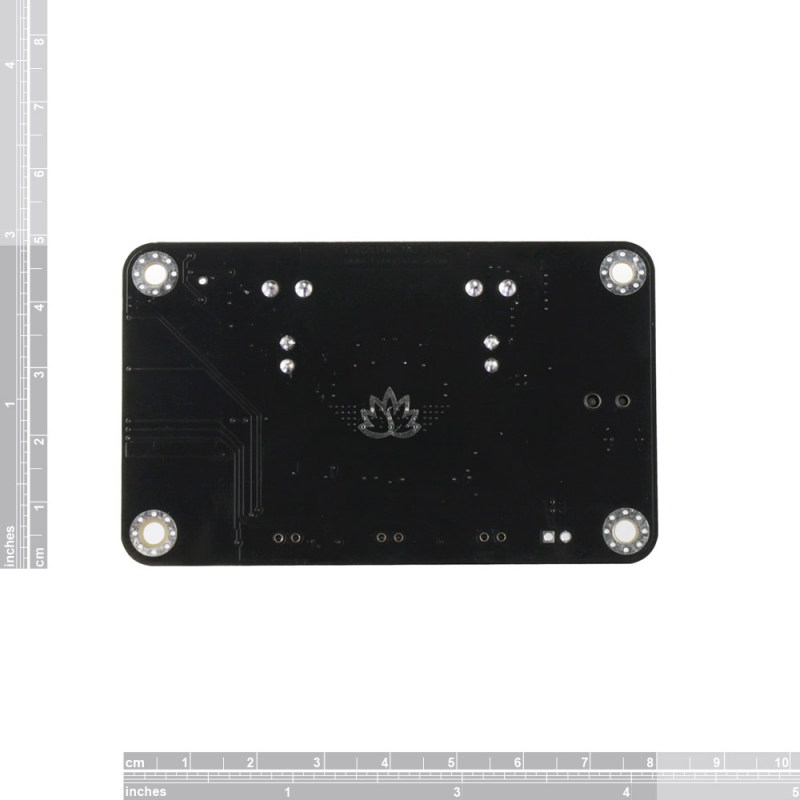

This is a 2x8W audio amplifier board with Bluetooth 4.2 integrated. It has perfect class-D architecture(Based on TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. The highlight point is Apt-X and TWS supported. Therefore, Users can stream audio to 2 pair amplifier boards at the same time wirelessly.

It's perfect for your Hi-Fi application. You may wish to pair with a mobile phone or a computer (etc). Power the amplifier board. Use your phone or PC (etc) to search for a new Bluetooth device. The module will appear as "BT Speaker"( You can also change the BT name if you have a programmer). You don't need a PIN, pair it and then you can play music.







Standard working mode



2 boards work in TWS mode



  • S1 - Long press 3s into pairing mode. Long press 6s clear the pairing info.
  • S1+S2 - Long press 1s into TWS slave mode.
  • S1+S3 - Long press 1s into TWS master mode.
  • S2+S3 - Long press 1s disconnect TWS connection.



Specification:

TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)

Parameter

Condition

Min

Typ

Max

Supply Voltage (V)

-

8

12

16

Quiescent Current (mA)

SD = 2V, No load, Vcc = 12V

-

20

35

Input Sensitivity (V)

Gain = 26dB

-

0.283

-

Input Impedance (Kohm)

-

-

30

-

Gain (dB)

-



26



Output Power (W rms)

THD+N = 10%, Vcc = 12V

-

8

-

Efficiency (%)

Vcc = 12V, RL = 8Ω, PO = 5W

-

86

-

Minimum Load (ohm)

-

3.2

4

-

Frequency Response (Hz)

±3dB

20

-

22k

Operating Temperature (℃)

-

-40

20

65



Features:

  • Size: 4.8cm x 8cm
  • APTX supported
  • TWS supported
  • External mute control port
  • Working voltage: DC8V-16V
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection
  • Bluetooth 4.2

Applications:

  • Personal computer
  • Desktop amplifier
  • Microphone preamplifier
  • Home DIY
  • Vending machine,Lifts
  • Interactive kiosks
