TSIR04B - 4 Channel Outputs ,4 optically Isolated Inputs Bluetooth Smartphone Relay

TSIR04B - 4 Channel Outputs ,4 optically Isolated Inputs Bluetooth Smartphone Relay
TSIR04B - 4 Channel Outputs ,4 optically Isolated Inputs Bluetooth Smartphone Relay TSIR04B - 4 Channel Outputs ,4 optically Isolated Inputs Bluetooth Smartphone Relay
Brand: Tinysine
Product Code: G54A3BAB1D9CDE
Reward Points: 0
Availability: 144
Price: $52.95

5 or more $48.50
20 or more $45.60
   - OR -

Description:

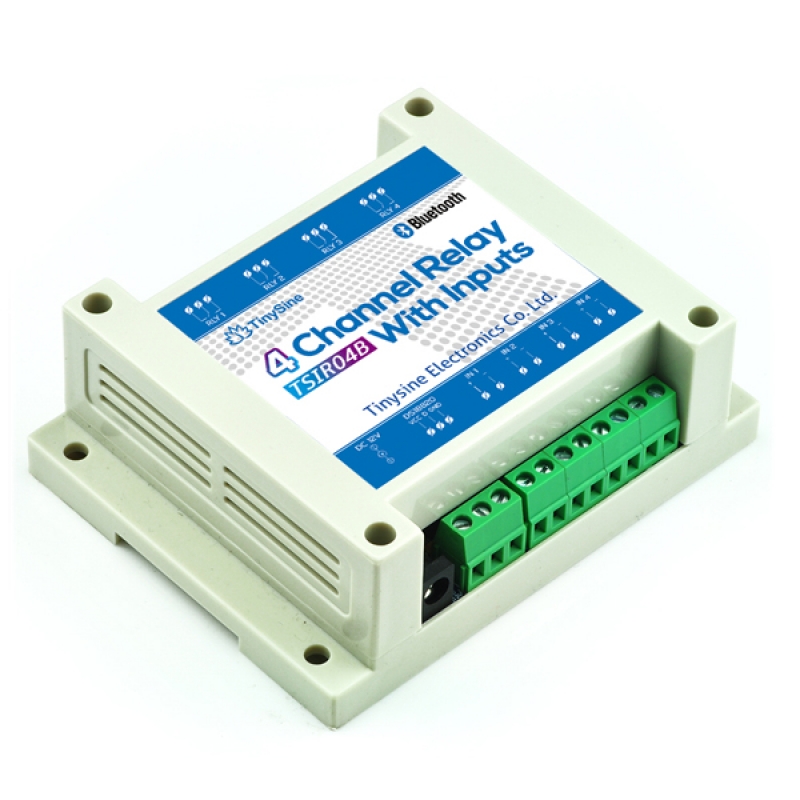

TSIR04B are 100% compatible with TSIR04. We just removed the OLED display and put the relay board in a plastic enclosure.

This is a TSIR04B Bluetooth verison relay board with optically isolated inputs and temperature sensor port. Very powerful and easy to use. You can easily control this relay board by your computer or smartphone using bluetooth. The communication way also can be changed easily. Remove the Bluetooth Bee module instead with a WiFiBee, it becomes a WIFI relay. It will be a USB relay when you plug a USBBee. Very convenient to use.

The TSIR04 provides four volt free contact relay outputs with a current rating of up to 10Amp each. The module is powered from 12VDC power supply. The DC input jack is 2.1mm with positive core polarity, The relays are SPDT type.









Optically Isolated Inputs

TSIR04 has 4 optically Isolated input ports. Input voltage absolute Max. 30v DC, Operational 4.5v to 27v DC. TSIR0x has 2 working modes:

Normal mode: When the board reads a input signal. It will report the input states.

Auto mode: When the board reads a input signal. It will report the input states and turn on the corresponding relay. When the input voltage is removed, the relay will turn off.



OLED display

OLED display shows the current board state. You can check the state without connecting with you PC.

Current mode: Manual/Auto
IN1:0/1 RLY1:ON/OFF
IN2:0/1 RLY2:ON/OFF
IN3:0/1 RLY2:ON/OFF
IN4:0/1 RLY3:ON/OFF
Temperature: xxx  degree



Relay power rating
If the relay is used at a voltage or current exceeding this specification, the life of the contacts may be significantly shortened.

A full datasheet for the relays used on the TSIR04 is here: G5LA datasheet

Please choose the correct DC power supply for your board.,



Commands
The TSIR04 operates with an easy to use command set as described in the table below.

TSIR04 Baud rate : 9600

Test program
To get the TSIR0x up and running in the minimum amount of time we have put together an example program to demonstrate the functionality of the module.We also provide a FREE android App TSIR Bluetooth. You can control your device by your phone very easily.
