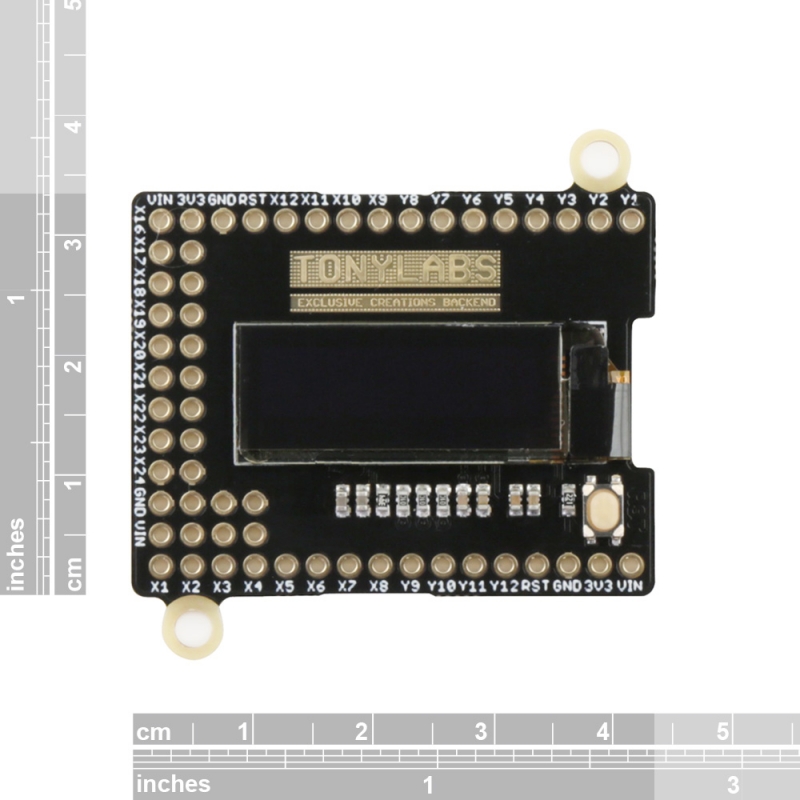

The OLED skin is a module that is fully compatible with the pyboard. It has a 0.91" 128x32 OLED module on it. pyboard fans can display some simple information by use this OLED skin.

The driver chip is SSD1306, communicates via I2C only. This board/chip uses I2C 7-bit address 0x3C. The OLED and driver require a 3.3V power supply and 3.3V logic levels for communication.The power requirements depend a little on how much of the display is lit but on average the display uses about 20mA from the 3.3V supply.

The pyboard is a compact and powerful electronics development board that runs MicroPython. It connects to your PC over USB, giving you a USB flash drive to save your Python scripts, and a serial Python prompt (a REPL) for instant programming. Requires a micro USB cable. Works with Windows, Mac and Linux.


Display details:

  • Diagonal Screen Size:0.91"
  • Number of Pixels:128 × 32
  • Interface:I2C
  • Drive IC: SSD1306
  • Color Depth:Monochrome (White)
  • Pixel Pitch (mm):0.175 × 0.175
  • Pixel Size (mm):0.159 × 0.159
  • Brightness ( cd/m2):150 (Typ) @ 7.25V
