2 x 50 Watt Class D Audio Amplifier - TSA3611

2 x 50 Watt Class D Audio Amplifier - TSA3611
2 x 50 Watt Class D Audio Amplifier - TSA3611 2 x 50 Watt Class D Audio Amplifier - TSA3611 2 x 50 Watt Class D Audio Amplifier - TSA3611 2 x 50 Watt Class D Audio Amplifier - TSA3611
Brand: Tinysine
Product Code: G5CB04F9F828BF
Reward Points: 0
Availability: 468
Price: $40.50

5 or more $39.00
20 or more $36.00
   - OR -

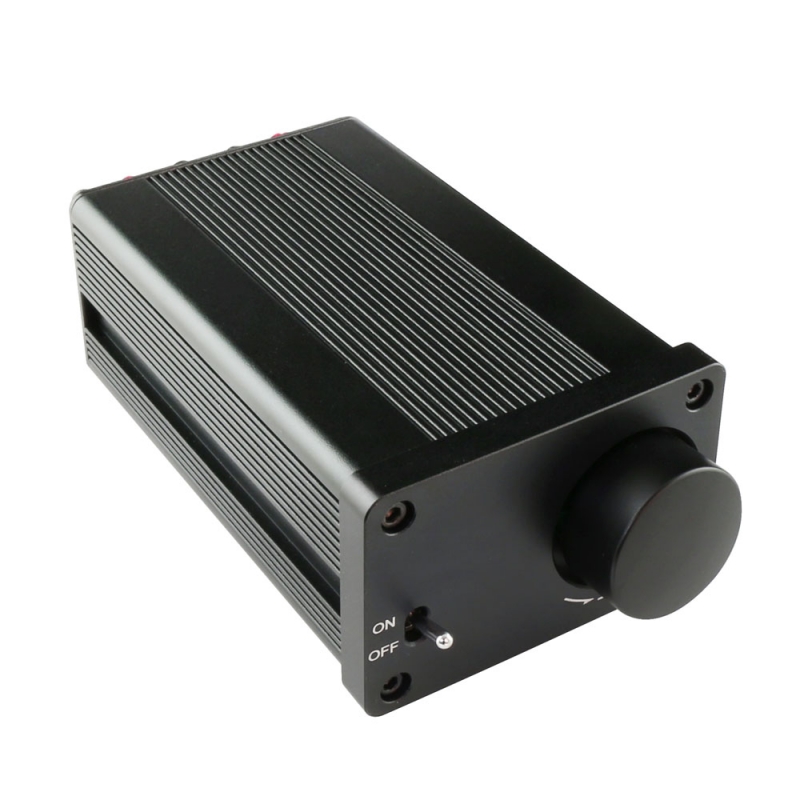

This is a 2x50W audio amplifier which integrated TI’s TPA3116 as the driver. It has perfect class-D architecture and each channel has 50W power output. This board can be powered by any DC12V-24V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. There are a ON/OFF switch and a volume knob on the front panel. It's very easy to use.







Specification:

TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)

Parameter

Condition

Min

Typ

Max

Supply Voltage (VDC)

-

12

21 24

Idle Power

SD Floating

-

1.3W

2.5W

Standby Power

SD Connected to GND

-

0.1W

0.3W

Maximum Current

100W @ 4Ohm

-

5.29A

-

Efficiency

50W @ 4Ohm

87% - 92%

Minimum Load Impedance



3.2Ω



Switching Frequency

SD Floating

- 394KHZ -
Gain   24dB 25dB 26dB

Input Sensitivity(RMS)

@4Ω, 50W, 1KHz

- 808mV -

Input Impedance

- - 22KΩ -

Output Power

@4Ω THD+N 1%

- 36W -

@4Ω THD+N 10%

- 50W -

Bandwidth @ ±3dB

@4Ω

20Hz

- 20KHz

THD

@4Ω, 1W, 1KHz

-

0.0299%

-

@4Ω, 10W, 1KHz

-

0.073%

-

Features:

  • Dimension: 16cm x 7.5cm x 4.8cm
  • Weight: 420g
  • Working voltage: DC12V-24V
  • Over temperature protection
  • Over current protection

Applications:

  • Personal computer
  • Desktop amplifier
  • MP3, Video CD output Amplification
  • Home Theater
  • Powered DVD Systems
