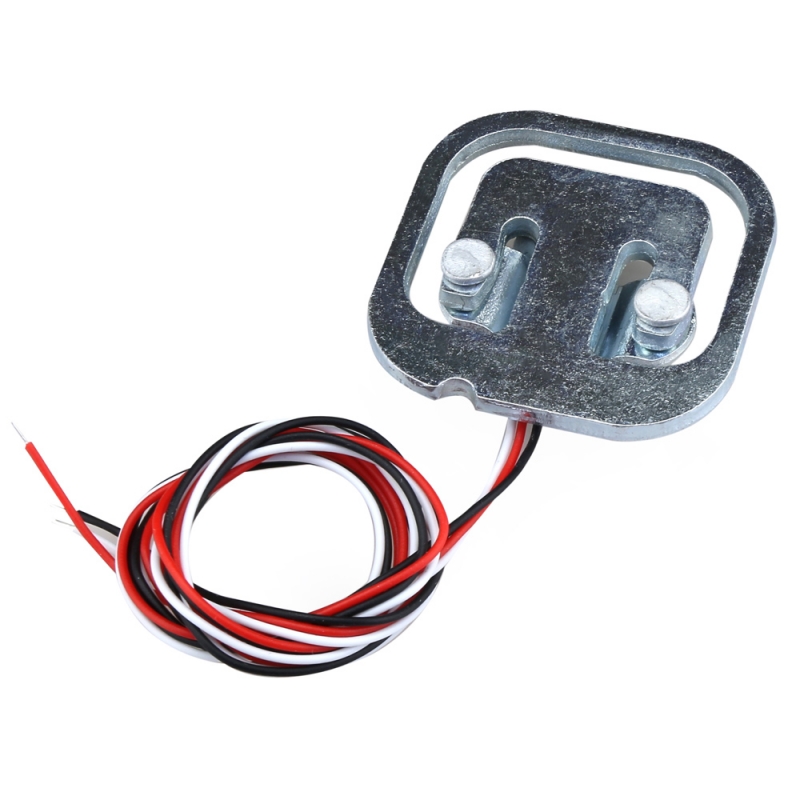

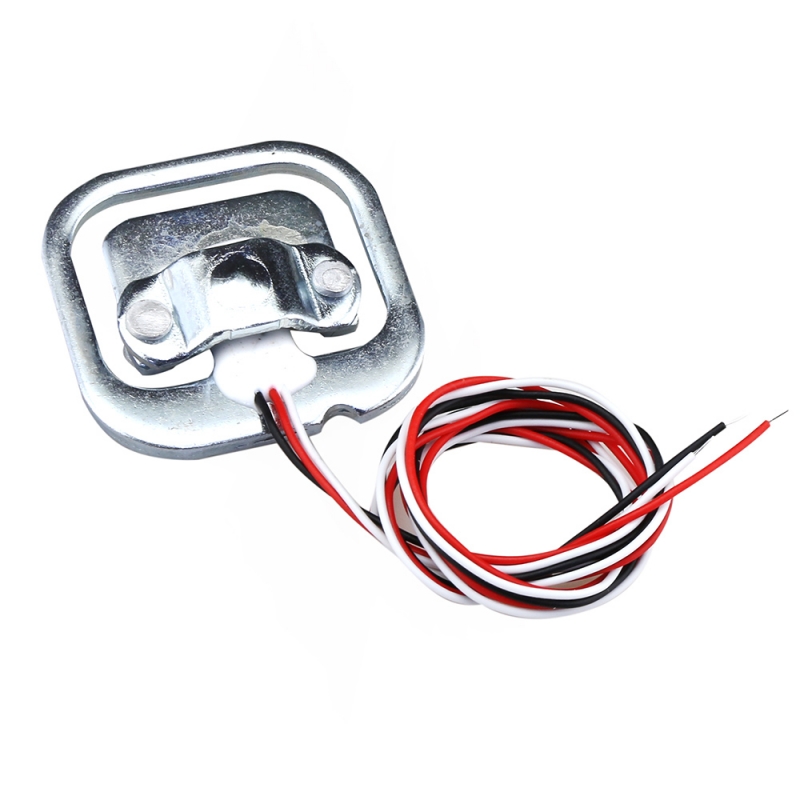

Strain Gauge Load Cell - 50kg
Product Code: G681C1D90DCD72
Reward Points: 9
Availability: 95
Reward Points: 9
Availability: 95
Price: $2.85
Description:
This is a 50kg strain gauge load cell, it's a type of electronic sensor used to measure force or strain. They are made of an insulating flexible backing with a metallic foil pattern. The resistance of a strain gauge changes when force is applied and the object is deformed along with the foil and this change will give a different electrical output. However, these thin foils are very delicate and are easy to over-bend.
Strain gauges are useful for projects when you need to measure pressure, force, weight, and tension. Note that this is just the load cell, no ADC or converter is included! Also, like all load cells, the sensor must be calibrated with known weights once installed!
Pins define:
- Red: VCC
- Black: Signal output +
- Yellow: Signal output -
Features:

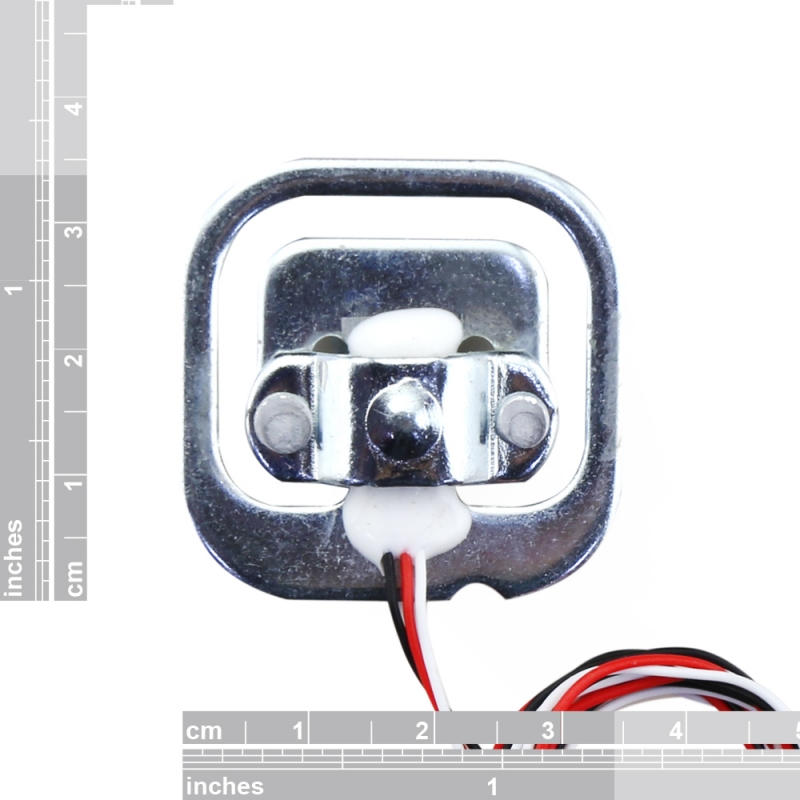

- Dimensions: 34x34x7.8mm
- Working voltage: DC 5-10V
- Capacity: 50kg
