Waterproof Matel Push Button with RGB LED - Panel Mount 16mm
Product Code: 16mm RGB
Reward Points: 0
Availability: 1000
Reward Points: 0
Availability: 1000
Price: $3.95
5 or more $3.80
20 or more $3.60
20 or more $3.60

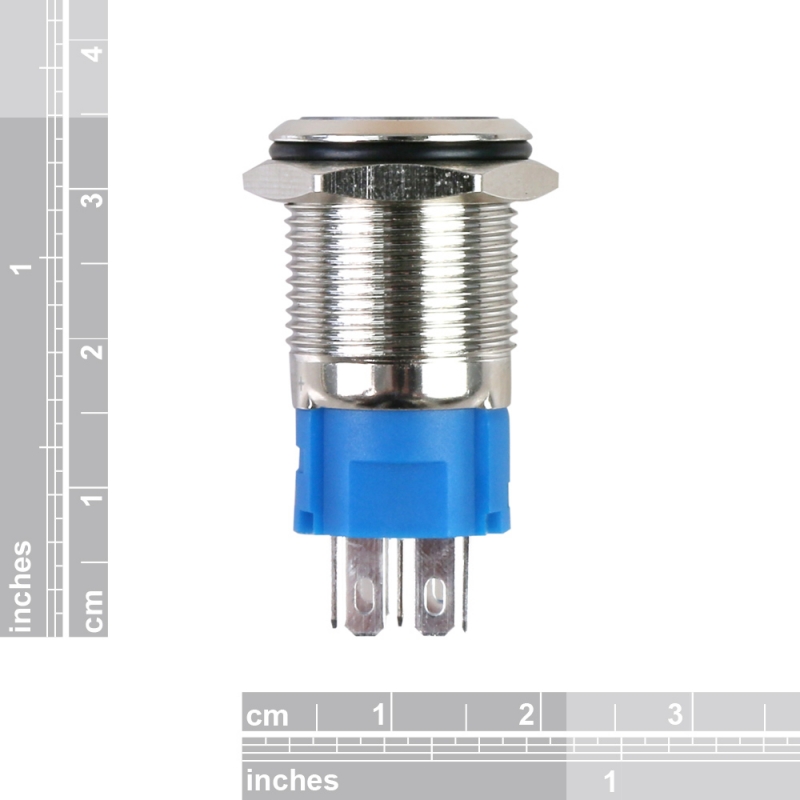

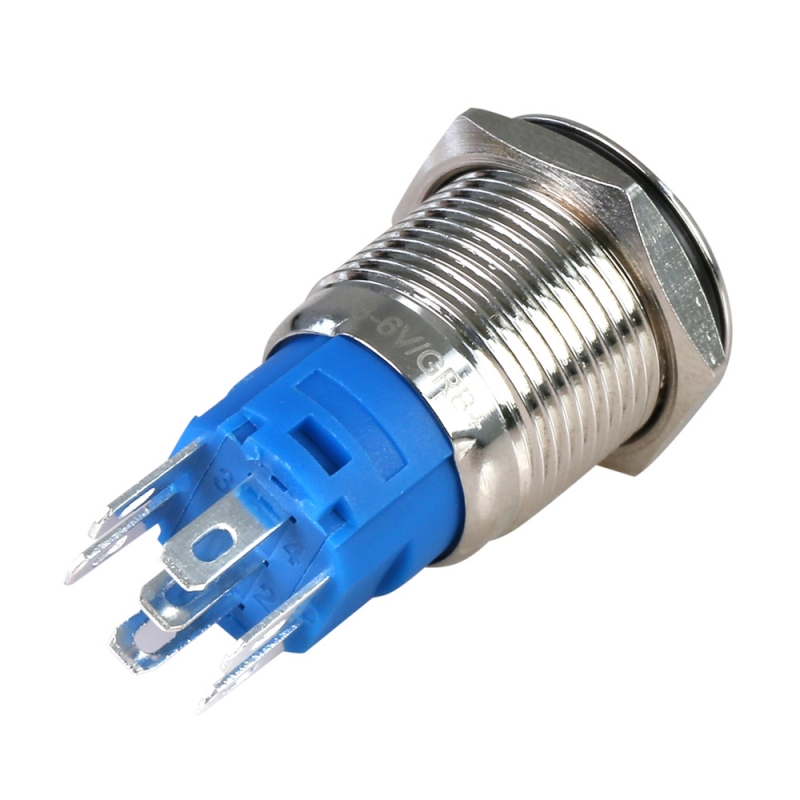

This is a very useful, waterproof, panel-mount momentary switch. It is a SPST N.O. with the threaded portion being 16mm in diameter. This button is perfect for basic On/Off functions. Overall length (including leads) is 33mm and has small solder lugs for connection. The button has RGB LED with commom anode, it can be set to always ON or synchronized with button ON/OFF by different connection ways.

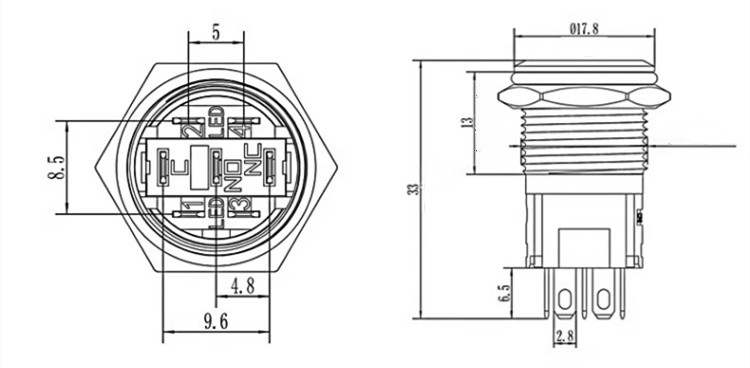

Pin definitions:
- C: button common
- NO: button normally open
- NC: button normally close
- 1: Green
- 2: Red
- 3: LED+
- 4: Blue
Features:
- Working temperature: -25℃ ~ 55℃
- Working voltage: DC3-6V
- Switching Current (Max) 3A
- IP67 Rated: Completely Dust-Tight and Water-Tight
