Aluminum Heatsink with fan - 90x60x20mm
Product Code: 90x60x20mm
Reward Points: 0
Availability: 200
Reward Points: 0
Availability: 200
Price: $9.50

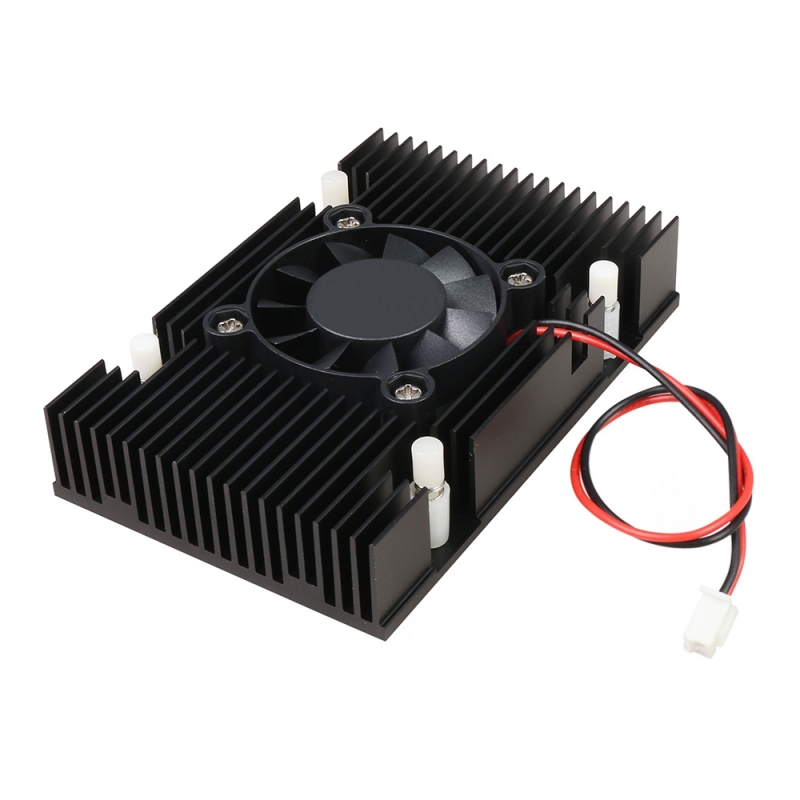

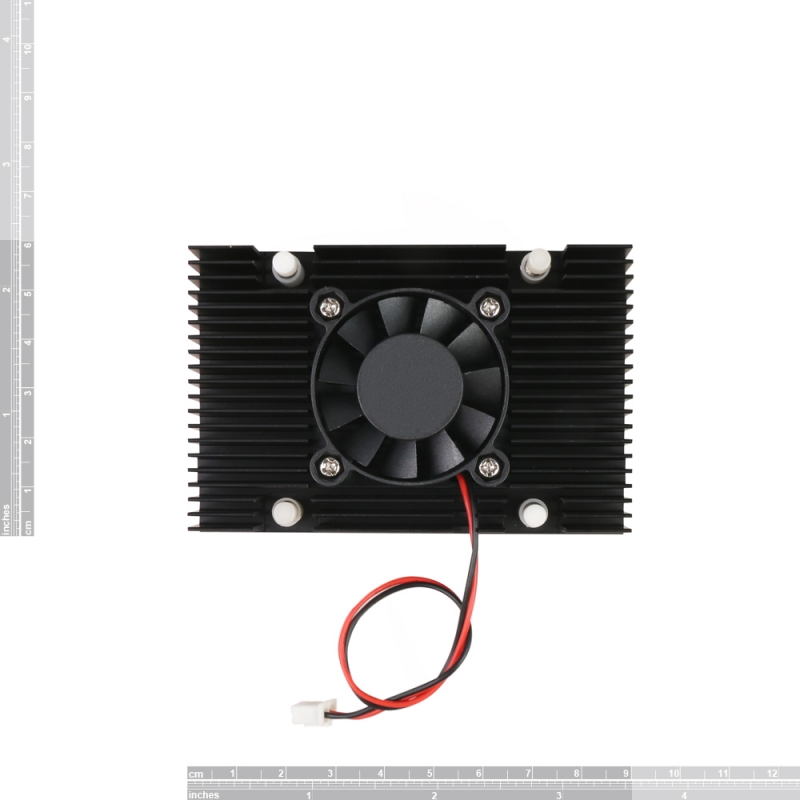

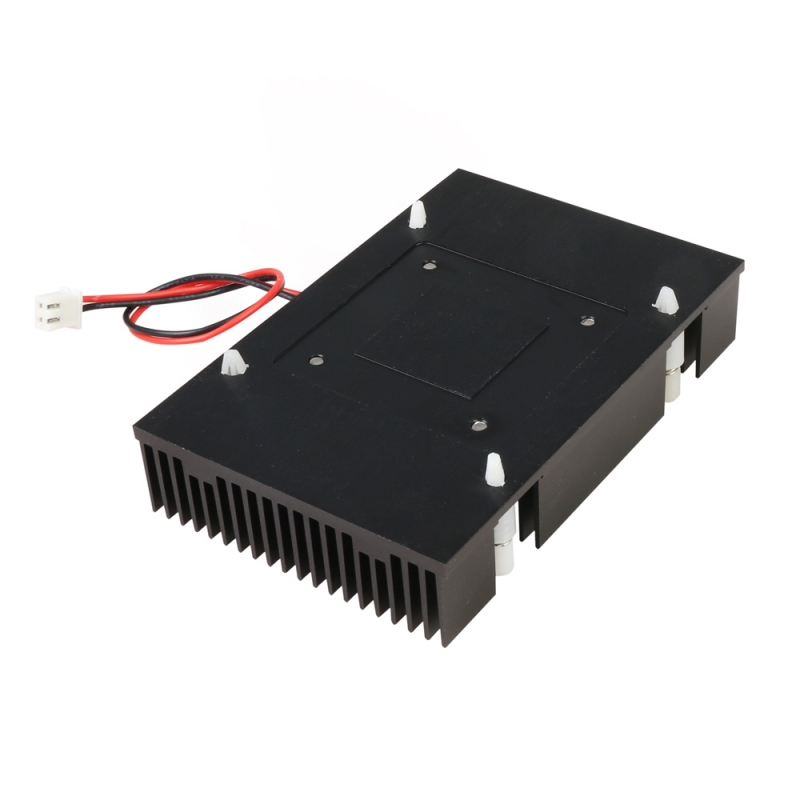

This heatsink has 90x60x20mm size, material is Aluminum, it’s perfect for cooling applications such as IC chips, CPU, MOSFET, amplifier, etc. There is a DC12V fan on the top to speed up cooling. The heatsink can be installed by 4 screws easily.
- Material: Aluminum
- Mounting type: panel mount
- Cable length: 15cm with JST XH 2-pin connector
- Weight: 115g

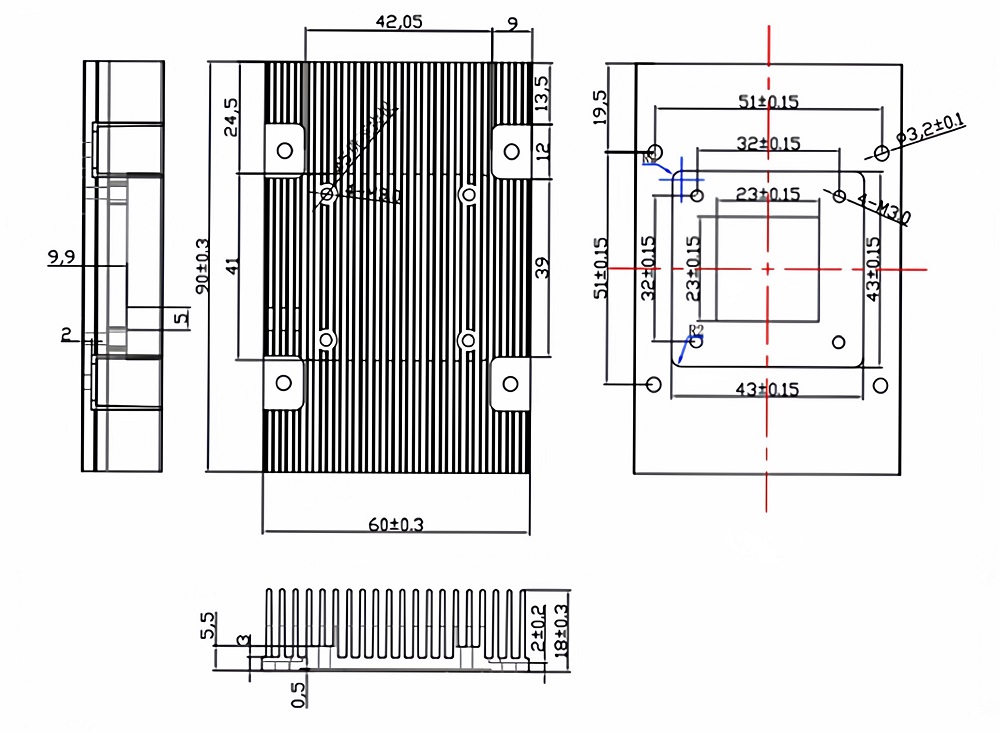

- Dimension: 90x60x20mm
- Fan working voltage: DC12V
- Fan working current: 0.1A
- Fan speed: 5300~5900rpm
