Screw Panel Mount USB-C to 4-pin JST PH Cable
Reward Points: 0
Availability: 500

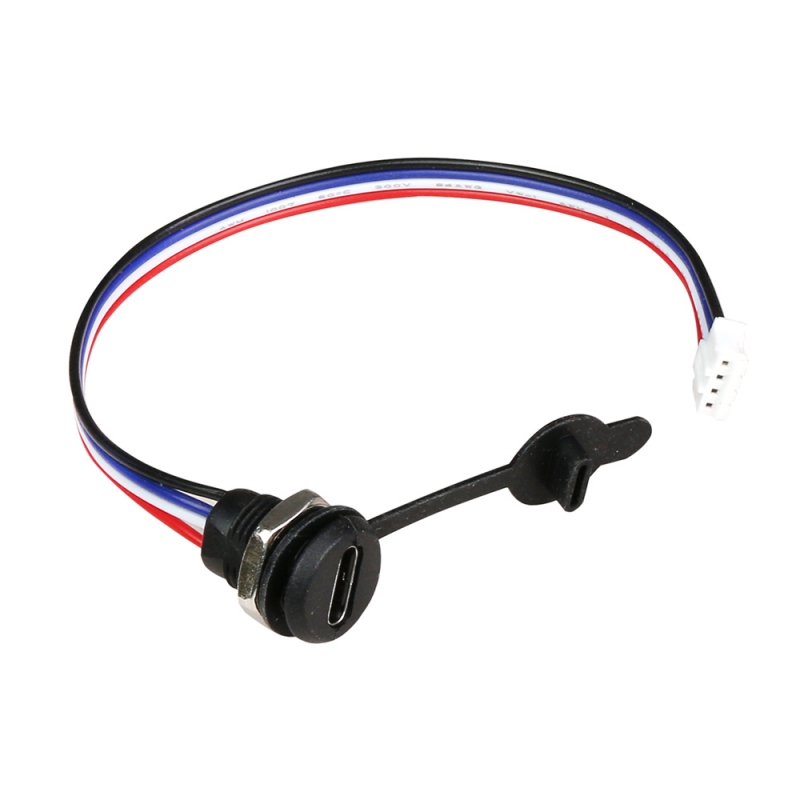

This panel mount cable is great for making USB Host or (some) client connections with a panel-mount setup. On the small panel-mount side you get a USB C connector, the other end has power, ground and D+ / D- lines. The panel mount part is very small, only about 0.5 inch diameter, and a JST PH cable on the other end for quick integration.
Note: Like many USB C cable adapters we've found, the CC lines are not tied to anything and so this will not respond properly to USB PD requests. That means its not great as something you plug a host into, particularly if its a Mac since those are picky about requiring CC lines. It's much better if you're plugging a USB client into it, where the JST side goes to a microcontroller or computer that provides power and data.
The adapter can fit holes 11mm~13.5mm, you can drill in your wood, plastic, or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Now you have a USB C jack and USB C plug for connecting any cable.

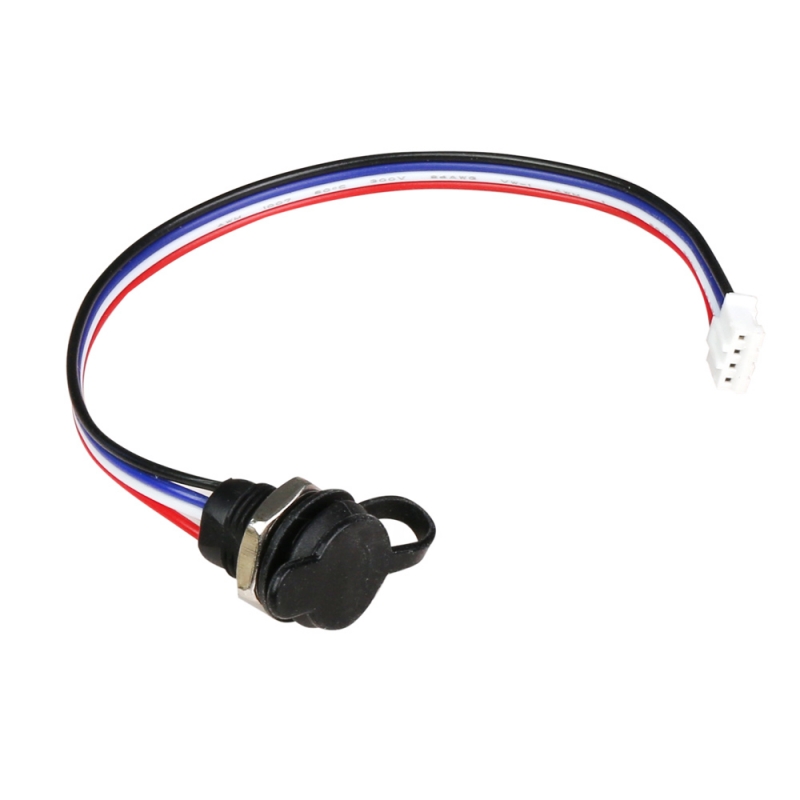

It's designed to easily attach to a panel up to 7mm thick, or as thin as a few mm. Perfect for adding a USB C port to your project enclosure! It also comes with a removable cap that to help protect the USB-C port from dirt or grime.

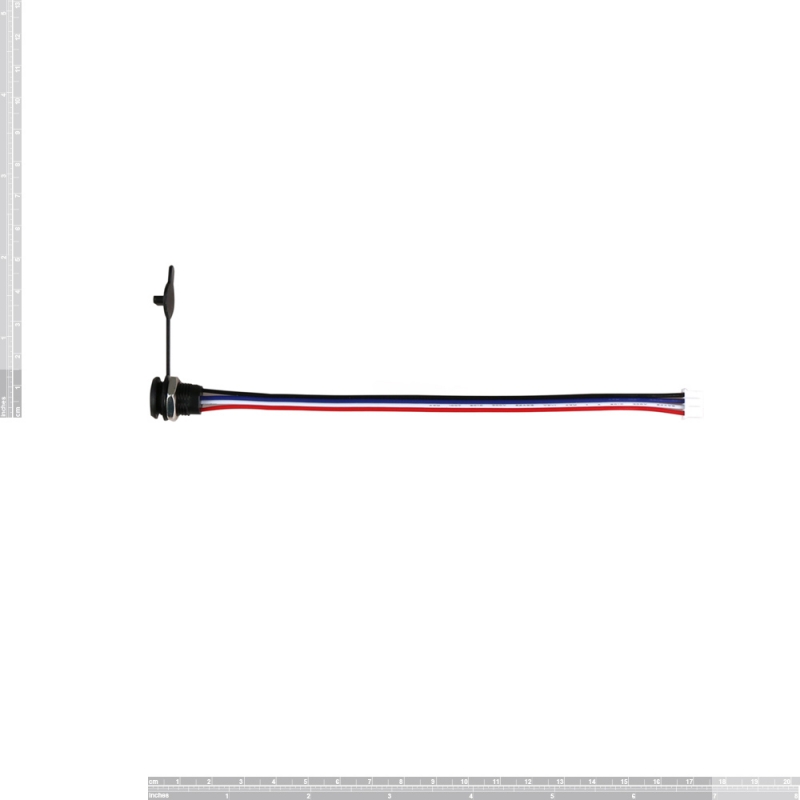

- Length: 18cm
- Overall diameter (including screw nut): ~14mm
- Drill diameter: 11mm~13.5mm
-
Red: 5V, White: D-, Blue: D+, Black: ground.
