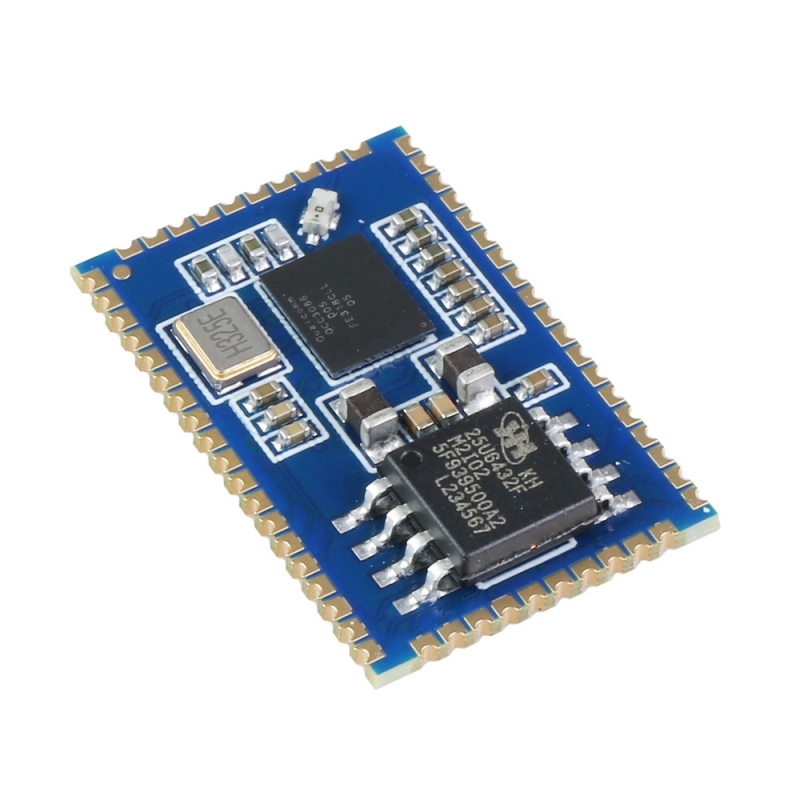

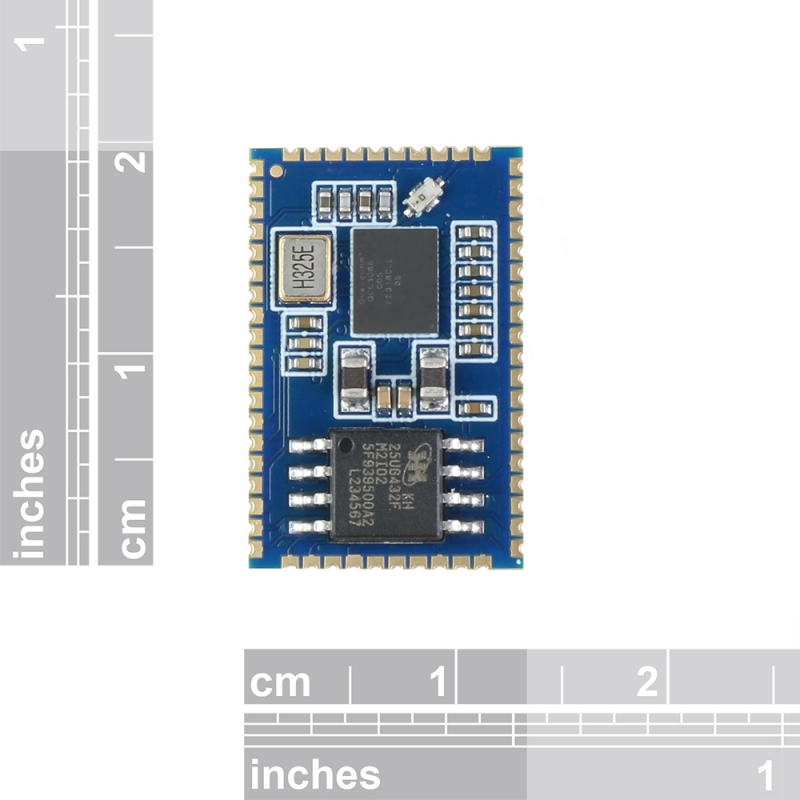

Bluetooth 5.3 APTX Audio Transmitter Module - TS3086
Price: $12.80
5 or more $12.00
20 or more $11.00
20 or more $11.00
TS3086 is a cost effective, low power and compact solution Bluetooth 5.3 module with good performance. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the Qualcomm QCC3086 chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully qualified single-chip dual mode Bluetooth@v5.3 system. This module need connect external antenna.
Features:
TS3086(QCC3086) features
- Qualified to Bluetooth® v5.3 specification
-
240 MHz Qualcomm® Kalimba™ audio DSPs
-
32/80 MHz Developer Processor for applications
-
Firmware Processor for system
-
Flexible QSPI flash programmable platform
-
Advanced audio algorithms
-
High-performance 24-bit stereo audio interface
-
Digital and analog microphone interfaces
-
aptX, aptX HD, aptX Low Latency, SBC, and AAC audio codecs support
-
Serial interfaces: UART, Bit Serializer (I²C/SPI), USB 2.0
-
Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger
Application subsystem
- Dual core application subsystem 32/80 MHz operation
-
32-bit Firmware Processor:
- Reserved for system use
- Runs Bluetooth upper stack, profiles, house-keeping code
- 32-bit Developer Processor: Runs developer applications
- Both cores execute code from external flash memory using QSPI clocked at 32 MHz or 80 MHz
- On-chip caches per core allow for optimized performance and power consumption
Bluetooth subsystem
- Qualified to Bluetooth v5.3 specification including 2 Mbps Bluetooth low energy (Production parts)
- Single ended antenna connection with on-chip balun and Tx/Rx switch
- Bluetooth, Bluetooth low energy, and mixed topologies supported
- Class 1 support
Applications:
- USB dongles and source devices
Documents:
- Datasheet
- Reference design
- ADK software
