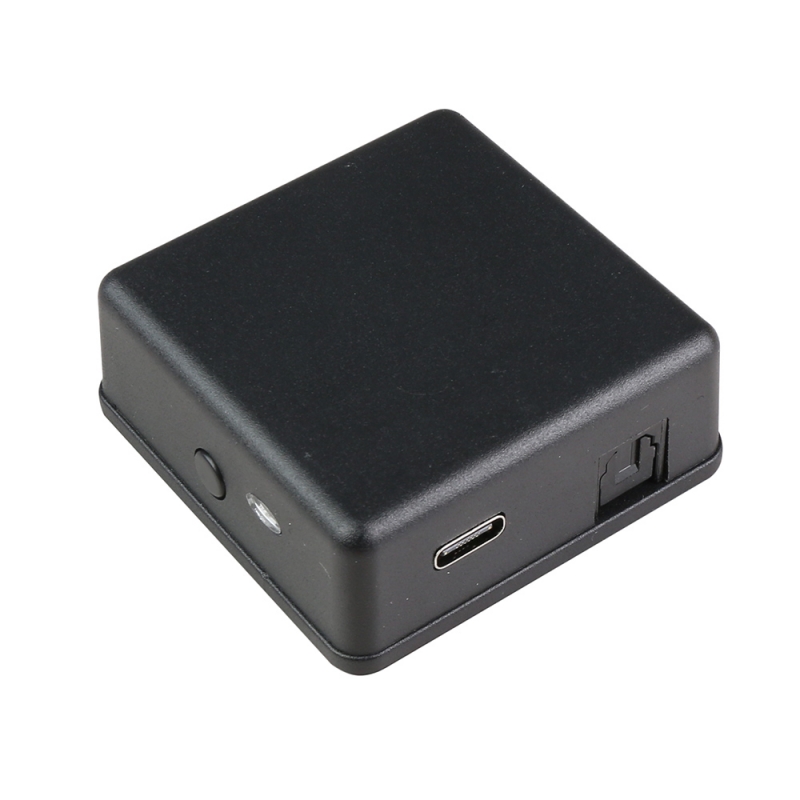

TSA5005 - Bluetooth 5.3 Audio Transmitter Board - USB/SPDIF input
Product Code: TSA5005
Reward Points: 0
Availability: 100
Reward Points: 0
Availability: 100
Price: $18.95
TSA5005 is a compact size Bluetooth 5.3 audio transmitter. Maybe your music player (TV, Computer, DVD, Radio ect..) has support for SPDIF optical output but without Bluetooth integrated. And you don't want use cable connect with our amplifier board. You can use this little thing to let your audio player connect with your Bluetooth amplifier board wirelessly.
No need to install any drivers. Just plug the fiber optic audio cable with your audio playerSPDIF output port. Power it on and press the multifunction button, it will search and connect the Bluetooth receiver. This Bluetooth audio transmitter can works with our Bluetooth audio amplifier boards perfectly.
TSA5005 can remembers the connected Bluetooth receiver and automatically re-connect devices next time without any action. The pairing information can also be cleared by pressing the multifunction button for 5 seconds.
How to use:
- Keep your TSA5005 bluetooth transmitter and bluetooth receiver device within 5m.
- Turn on your bluetooth receiver device, keep it in pairing mode

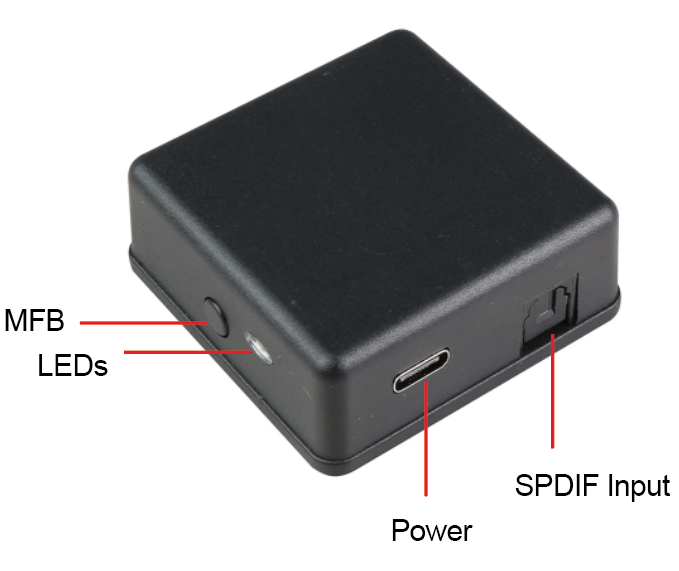

- Power on your TSA5005 Bluetooth transmitter, blue and green LED will blink. Then short click MFB button, blue LED will blink.
- Wait about 20 seconds and the connection will be successful.
- Connect your music player to TSA5005, now you can enjoy your music wirelessly.
- If you need to disconnect, just short click MFB, blue and green LED will blink. Short click MFB again will re-connect.
- Long press the MFB for about 5 seconds will clear the pairing information
Note: This Bluetooth audio transmitter can work with our Bluetooth audio amplifier boards perfectly.
Features:
- Bluetooth v5.3 specification support
- USB/SPDIF input audio source
- aptX, aptX Low Latency, SBC
- Sample rate 96K/24bit
- Bluetooth protocol: A2DP
- QTIL's proximity pairing and QTIL's proximity connection
- Output power: ClassII
- Effective transmission distance: 80~100m
- Dimensions: 51x51x20mm
- Weight: 30g
Documents:
- Use manual
