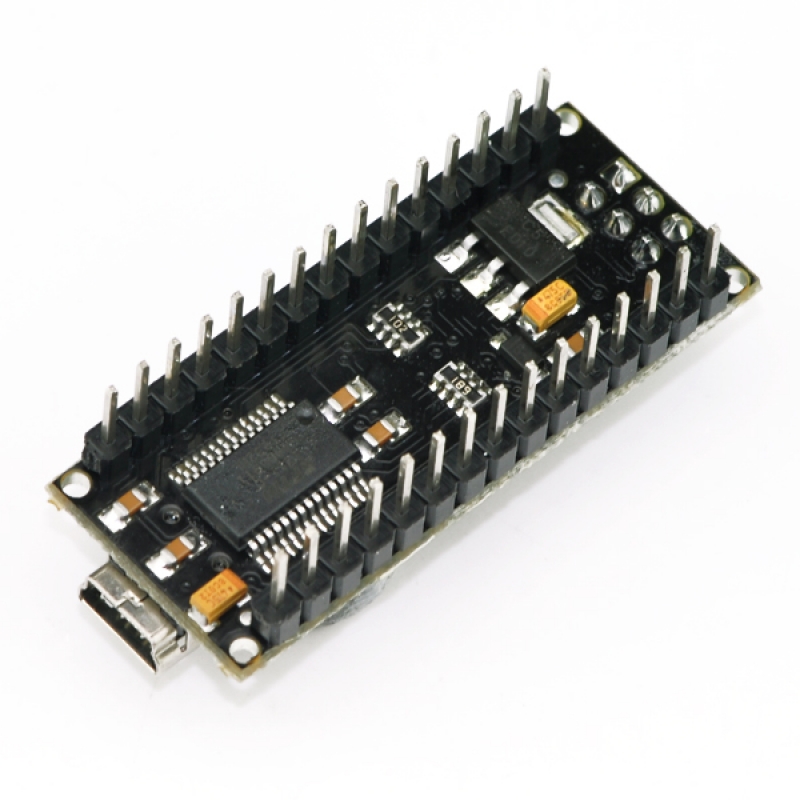

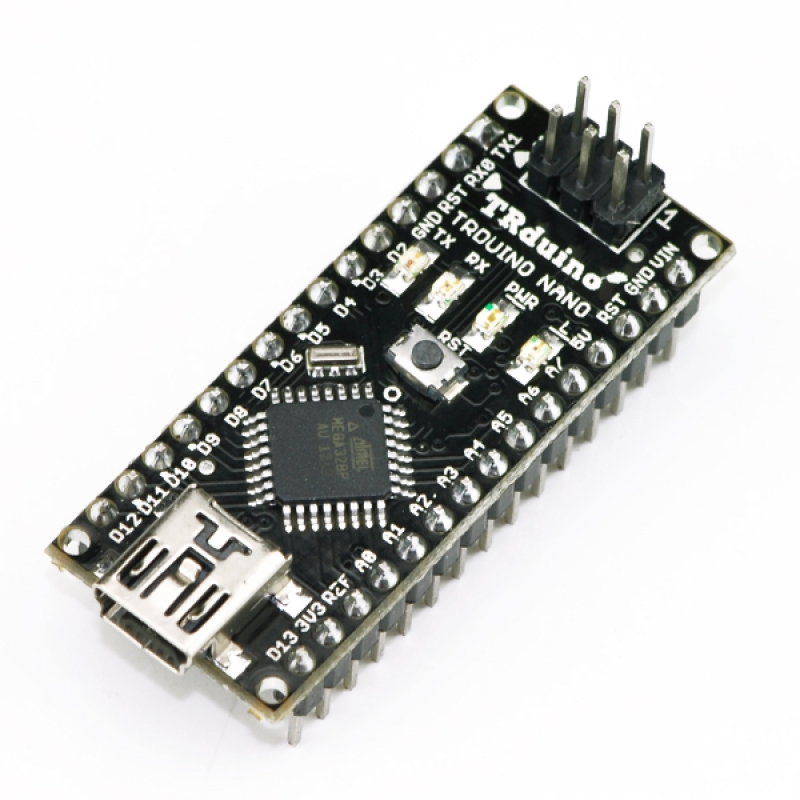

Tosduino Nano
Reward Points: 0
Availability: 1562
20 or more $7.80
The Tosduino Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Features:
Automatic reset during program download
Power OK blue LED on the bottom
Green (TX), red (RX) and orange (L) LED
+5V to AREF jumper
Auto sensing/switching power input
Small mini-B USB for programming and serial monitor (cable not included)
ICSP header for direct program download
Power OK blue LED on the bottom
Standard 0.1” spacing DIP (breadboard friendly)
Manual reset switch
Package include
1* Tosduino Nano With Free USB Cable
