How to use PC control your bluetooth relay

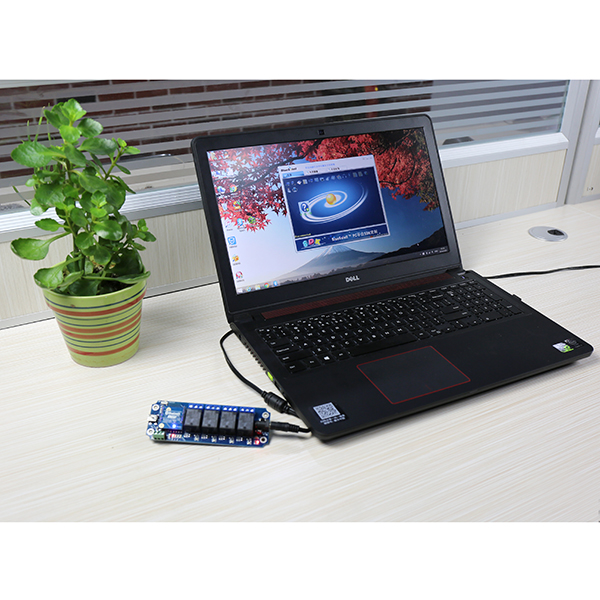

We have provided Android/iOS smartphone APP to control our bluetooth relay board. We also have a PC test program can control this relay board via USB port(serial port). Is it possible use PC control this relay wirelessly? The answer is YES!!



Hardware and Software required:



Step1:

Power up your bluetooth relay board. BluetoothBee module slow blink.

Step2:

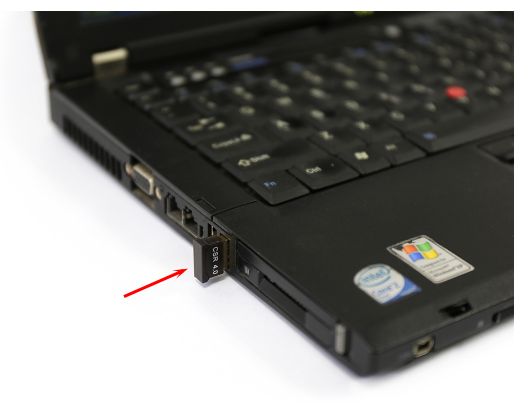

Plug the bluetooth adapter usb module on the PC USB port.

Step3:

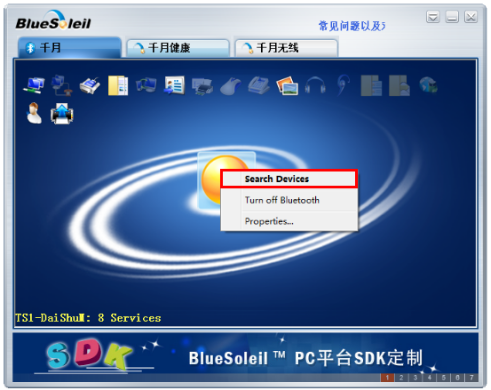

Open "BlueSoleil" program. Select the middle yellow ball->Right click->Search devices. You wil find your relay board in the surrounding bluetooth devices. Here our bluetooth named: "BT Bee-EDR"



Step4:

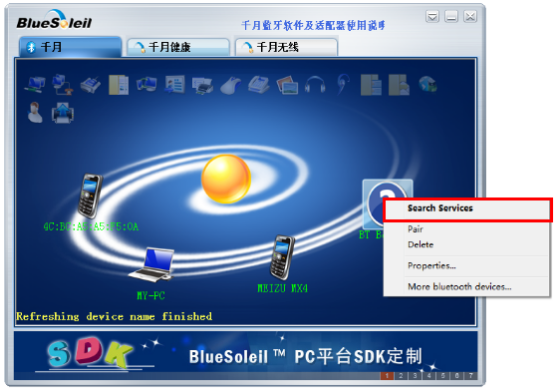

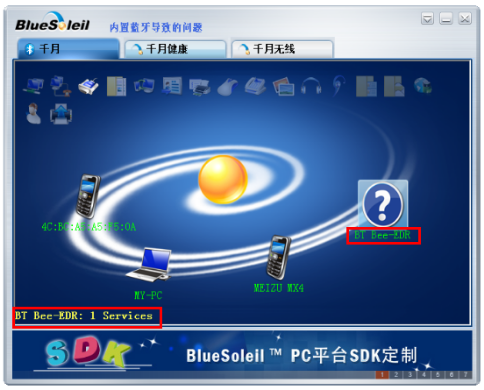

Select the "BT Bee-EDR"->Right click->Search Services.

Step5:

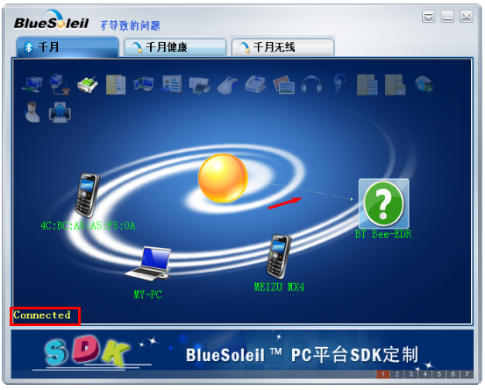

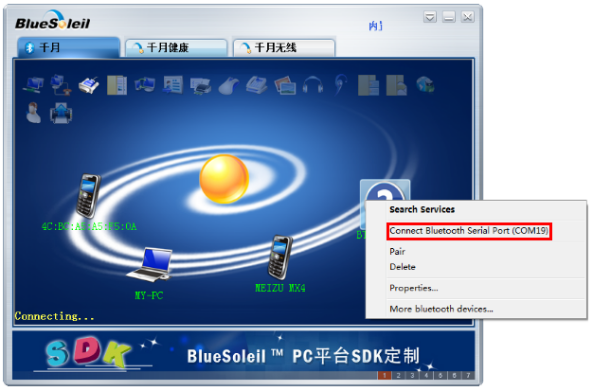

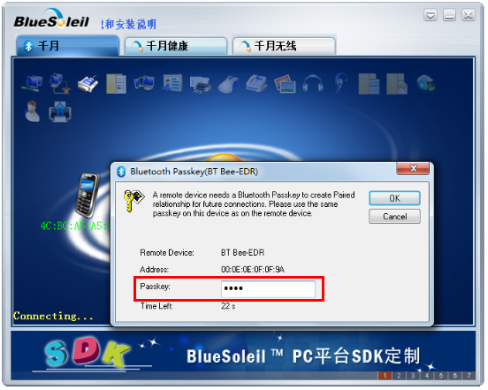

Select the "BT Bee-EDR"->Right click->Connect Bluetooth Serial port->input pair number:1234.  Bluetooth paired. A new COM port created.



Step6:

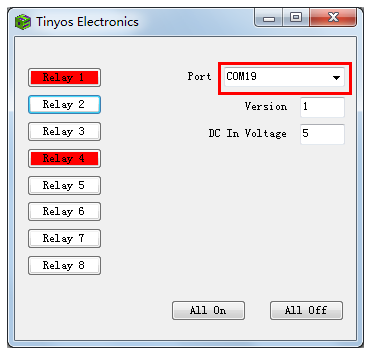

Open TOSR.exe. Select the correct COM port. You will be able to control the relay board now!
