TOSR80 - Bluetooth SmartPhone Range Hood Control Board- (Andorid/iOS)
Reward Points: 0
Availability: 777

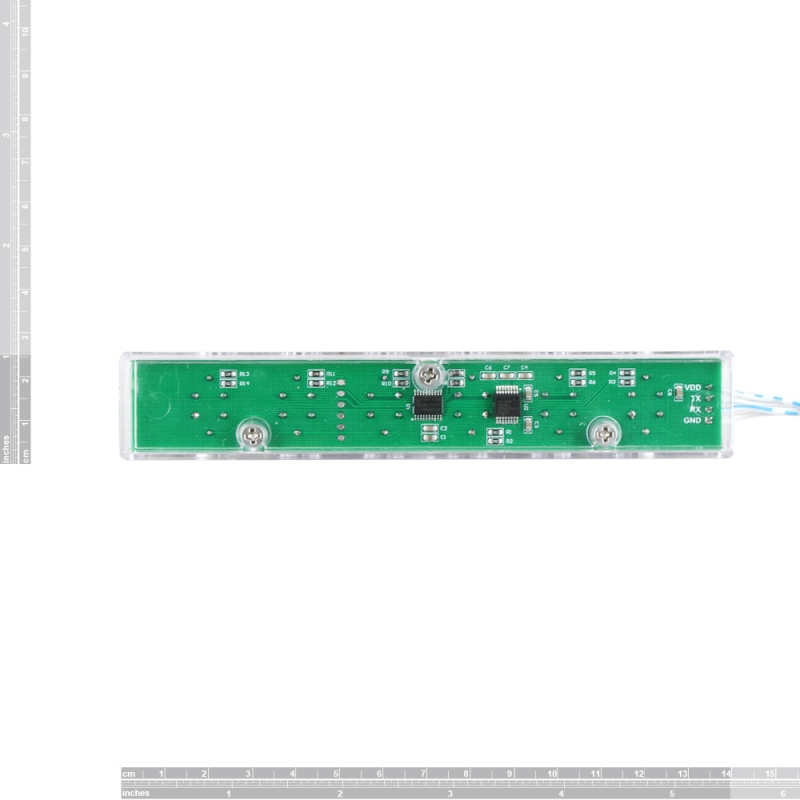

TOSR80 is a Bluetooth range hood control board. It can be integrated in the range hood and let it becomes a smartphone controllable range hood. It has 5 relaies on the board. Four relaies for the fan speed control and another one for the lamp on/off control.
We have provided both Andorid and IOS APP. Open the APP->Connect Device, use your phone to search for a new Bluetooth device. The module will appear as "TOSR80". Connect it, and then you can control the ON/OFF, fan speed and lamp on your smartphone. Board Bluetooth name can be changed and Android/iOS can be customized.

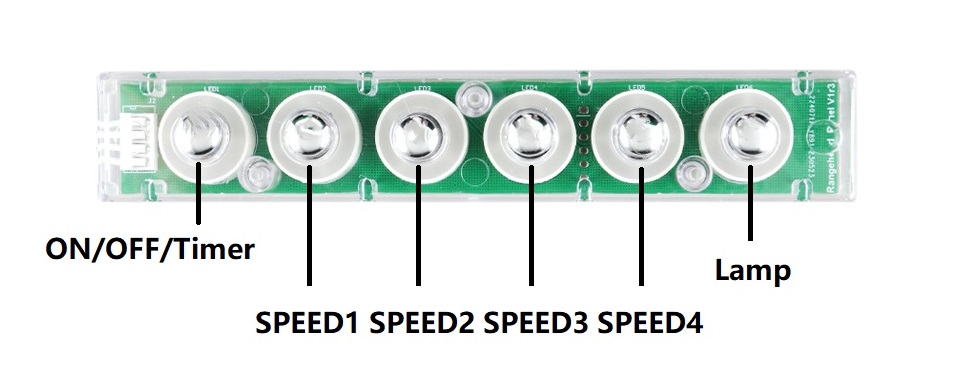

Circle LED is surround the buttons. The blue color LED will turn on when buttons pressed.
SmartPhone APP:
You can search "T range hood" in Apple app store and Google play to download the smartphone APP.
Specification:
- Board dimension: 12cm x 6.4cm x 2cm
- Switch dimension: 14cm x 2.42cm x 2.2cm
- AC110V input
- Bluetooth 5.1
- Bluetooth name can be customized
- APP can be customized
Shipping list:
- 1x Bluetooth control board
- 1x Switch
- 1x Switch cable
