XBee Wireless Kit for Arduino
Price: $64.50
This is the XBee XBP24CZ7WIT-004-revC module from Digi. The new Series 2C improves upon the power output and data protocol of the Series2. Series 2C modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.
The XBee/XBee-PRO ZB (S2C) introduces the SPI serial interface to Digi’s through-hole ZigBee radio. Please refer to the XBee/XBee-PRO ZB (S2C) product manual for more information.
Features:
- Frequency: 2.4GHz
- Range: 1200m (Environment and antenna related)
- Sensitivity: -103dBm
- Operating Supply Voltage: 2.1V to 3.6V
- Supply Current Transmitting: 40mA
- Supply Current Receiving: 15mA
- Output Power: 8dBm
- Interface Type: SPI, UART
- Antenna Connector Type: U.FL

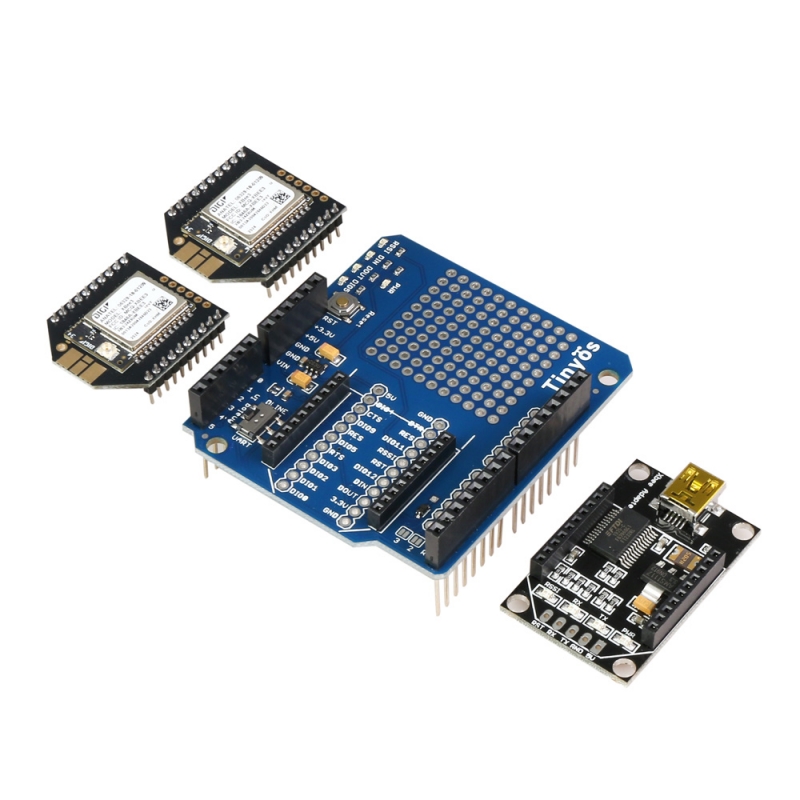

Kit contents:
- Xbee S3 Pro module x2
- 2.4GHz Flat PCB Antenna - 4dBi x2

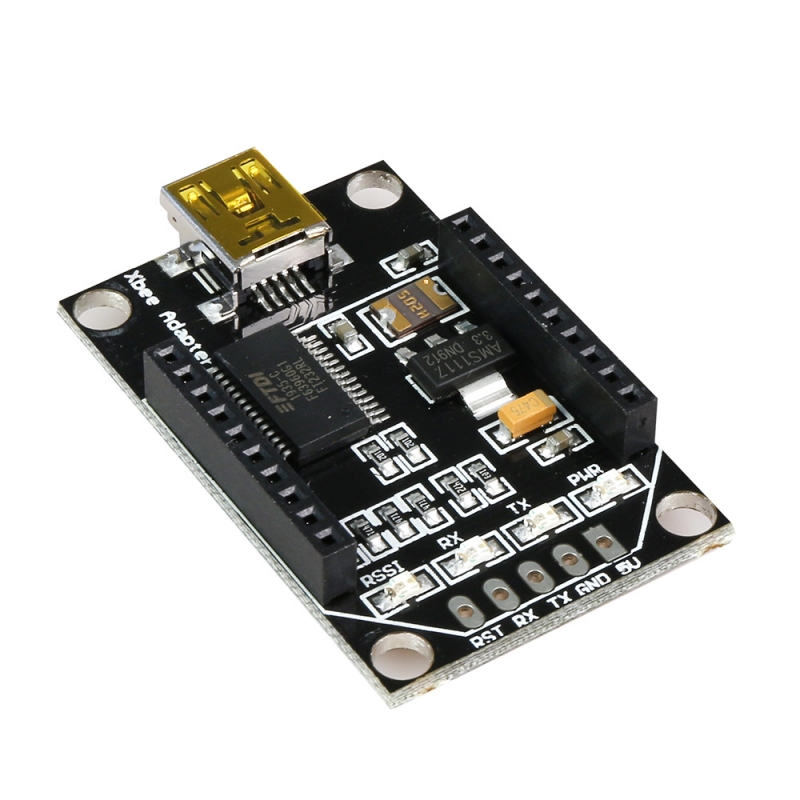

- Xbee USB adapter x1
- Xbee shield x1
- USB cable x1
Documents:
